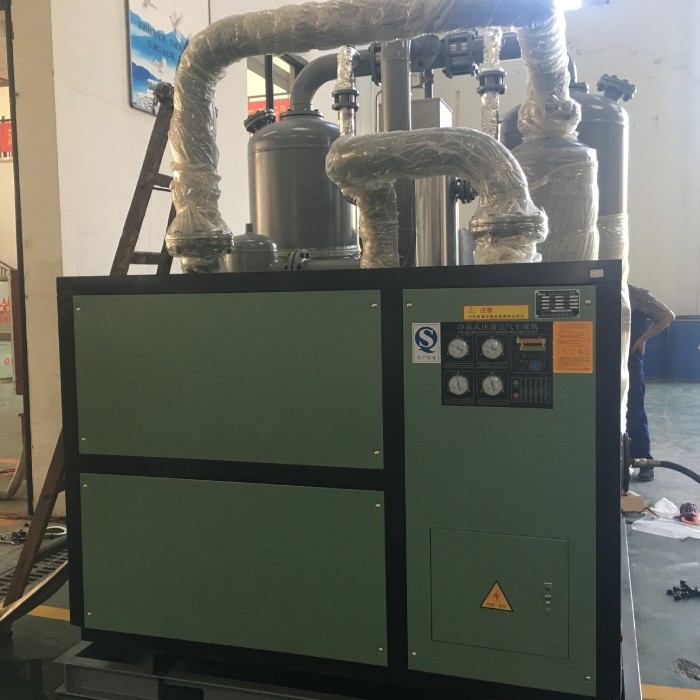

ZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System Manufacturing

ZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System Manufacturing

ZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System Manufacturing
ZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System ManufacturingZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System ManufacturingZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System ManufacturingZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System ManufacturingZRD Refrigerated Type Dryer | Custom Industrial Freeze Dryer | Compressed Air Purification System Manufacturing
CategoriesFreeze Dryer
BrandZHENGDA PSA Air Separation Plants
ModelZRD
Air Processing Capacity1〜500Nm³/min
Operating Pressure0.6〜1.0MPa
Rated Air Inlet Temperature≤45°C(Min 5°C)/≤85°C(Min 5°C)
Cooling ModeWind Cooling/Water Cooling
Dew Point of the Finished Product Gas≤-23°C
Pressure Drop Between Air Inlet and Outlet≤0.02MPa
Environmental Temperature≤42°C(Min 0°C)/≤45°C(Min 0°C)
FOB portShanghai Ningbo
Terms of PaymentL/C, T/T
Update Time2021-12-09
Detail Information
The refrigerated type compressed air dryer (refrigerated dryer for short) adopts the refrigeration & dehumidification principle. The humid & hot compressed air is carried out heat exchange through the evaporator, so that the gaseous water of the compressed air condenses into liquid water, and then it is discharged from the equipment through the gas-liquid separator.
Technical Features
1. Adopt the international famous-brand refrigeration compressor, with stable operation, low noise, less energy consumption and high safety & reliability.
2. DAN FOSS brand products of Denmark are used as main refrigeration parts of the equipment.
3. In order to avoid the secondary pollution of compressed air, during the manufacturing process, the parts which the air passes through are carried out the plastic spraying treatment; the equipment uses the unique gas-liquid separation design, so as
to achieve the thorough pollutant discharge.
4. With small & exquisite structure, adopt the no-foundation installation.
5. Utilize the advanced programmable control, with excellent digital display function.
6. Adopt the electronic pollutant discharge, not easy to be obstructed, with low energy consumption.
7. Select to configure the RS485/RS232 and combined transport interfaces, able to carry out the remote communication, centralized monitoring and joint control for air compressors.
8. Have the multi-failure warning & processing functions.
Note: The refrigerated dryer refers to computer type and common type available for being selected by the user.
Technical Indexes
A. Wind-cooling Type Refrigerated Dryer
Air Processing Capacity: 1〜500Nm³/min
Operating Pressure: 0.6〜1.0MPa (Provide the product in the range of 1.0~3.0MPa according to the user requirements)
Rated Air Inlet Temperature: Normal-temperature Type: ≤45°C (Min 5°C)
                                               High-temperature Type: ≤85°C (Min 5°C)
Cooling Mode: Wind cooling
Dew Point of the Finished Product Gas: ≤-23°C (dew point under the normal pressure)
Pressure Drop between Air Inlet and Outlet: ≤0.02MPa
Installation Method: The equipment adopts the no-foundation indoor installation method
Environmental Temperature: ≤42°C (Min 0°C)

B. Water-cooling Type Refrigerated Dryer
Air Processing Capacity: 1〜500Nm³/min
Operating Pressure: 0.6〜1.0MPa (Provide the product in the range of 1.0~3.0MPa according to the user requirements)
Rated Air Inlet Temperature: Normal-temperature Type: ≤45°C (Min 5°C)
                                               High-temperature Type: ≤85°C (Min 5°C)
Cooling Mode: Water cooling
Cooling Water Inlet Temperature: ≤32°C (Min 5°C)
Cooling Water Inlet Pressure: 0.2~0.4MPa
Dew Point of the Finished Product Gas: ≤-23°C (dew point under the normal pressure)
Pressure Drop between Air Inlet and Outlet: ≤0.02MPa
Installation Method: The equipment adopts the no-foundation indoor installation method
Environmental Temperature: ≤45°C (Min 0°C)
Normal-temperature & Water-cooling Type Refrigerated Dryer
Model
ZRD-1F
ZRD-2F
ZRD-3F
ZRD-5F
ZRD-6F
ZRD-8F
ZRD-10F
ZRD-13F
ZRD-15F
ZRD-20F
ZRD-25F
ZRD-30F
ZRD-40F
ZRD-50F
ZRD-60F
ZRD-80F
Air Flow Rate(Nm³/min)
1.2
2.4
3.8
5.2
6.5
8.5
11
13.5
17
23
27
35
45
55
65
85
Power Supply
∅/220V/50Hz
∅/380V/50Hz
Compressor Power(Kw)
0.22
0.74
0.93
1.11
1.11
2.07
2.22
2.59
2.96
3.70
4.44
4.55
7.77
9.25
11.10
14.80
Fan Power(w)
90
120
180
180
180
120*2
180*2
180*2
180*2
200*2
250*2
250*3
300*3
300*3
300*3
300*4
Inlet&Outlet Diameter DN(mm)
G1"
G1"
G1¼"
G1½"
G1½"
G2"
G2"
DN65
DN65
DN65
DN80
DN80
DN100
DN125
DN125
DN150
Outline Diamension(mm)
Length
600
700
820
850
880
1050
1140
1140
1260
1400
1550
1750
1950
2200
2200
2400
Width
450
450
500
520
520
690
690
690
700
750
800
900
1050
1150
1150
1300
Height
635
860
900
1000
1005
1040
1105
1105
1330
1360
1440
1595
1730
1730
1710
2155
Net Weight of the Equipment(kg)
45
70
90
105
115
225
260
280
330
400
550
780
820
930
1020
1450
High-temperature & Wind-cooling Type Refrigerated Dryer
Model
ZRD-1F
ZRD-2F
ZRD-3F
ZRD-5F
ZRD-6F
ZRD-8F
ZRD-10F
ZRD-13F
ZRD-15F
ZRD-20F
ZRD-25F
ZRD-30F
ZRD-40F
ZRD-50F
ZRD-60F
ZRD-80F
Air Flow Rate(N
/min)
1.2
2.4
3.8
5.2
6.5
8.5
11
13.5
17
23
27
35
45
55
65
85
Power Supply
∅/220V/50Hz
∅/380V/50Hz
Compressor Power(Kw)
0.22
0.74
0.93
1.11
1.11
2.07
2.22
2.59
2.96
3.70
4.44
4.55
7.77
9.25
11.10
14.80
Fan Power(w)
180
240
300
300
300
480
600
600
600
180*4
200*4
250*4
250*4
300*6
300*6
300*8
Inlet&Outlet Diameter DN(mm)
G1"
G1"
G1½"
G1½"
G1½"
G2"
G2"
DN65
DN65
DN80
DN80
DN80
DN100
DN125
DN125
DN150
Outline Diamension(mm)
Length
700
700
880
900
1100
1140
1350
1350
1400
1650
1700
1800
2200
2200
2400
2550
Width
450
450
550
600
600
690
700
700
800
800
900
900
1200
1250
1125
1440
Height
915
950
1075
1030
1180
1100
1390
1390
1440
1610
1655
1815
1900
2045
2060
2200
Net Weight of the Equipment(kg)
60
75
110
125
140
260
330
350
410
500
710
880
1050
1170
1260
1600
Normal-temperature & Water-cooling Type Refrigerated Dryer
Model
ZRD-10W
ZRD-13W
ZRD-15W
ZRD-20W
ZRD-30W
ZRD-40W
ZRD-60W
ZRD-80W
ZRD-100W
ZRD-130W
ZRD-150W
ZRD-200W
ZRD-250W
ZRD-280W
ZRD-300W
ZRD-350W
ZRD-400W
Air Flow Rate(N
/min)
11
13.5
17
23
35
45
65
85
110
140
160
210
260
290
310
360
410
Power Supply
220V/50Hz
∅/380V/50Hz
Compressor Power(Kw)
2.22
2.59
2.96
3.70
5.55
7.77
11.10
14.80
18.50
22.20
29.60
37.00
44.40
44.40
51.80
59.20
74.00
Cooling Water Circulation Volume(N
/h)
2.0
2.0
2.5
3.6
5.5
7.0
11.0
13.0
15.0
18.0
25.5
34.8
39.5
42.0
46.5
52.5
69.6
Air Connection Diameter DN(mm)
G2"
DN65
DN65
DN65
DN80
DN100
DN125
DN150
DN150
DN150
DN200
DN200
DN200
DN250
DN250
DN250
DN300
Cooling Water Pipe Diameter
G1"
G1"
G1"
G1"
G1½"
G1½"
G1½"
G2"
G2"
G1½"*2
G1½"
G1½"
G3"
G3"
DN100
DN100
G1½"*2
Outline Diamension(mm)
Length
1140
1140
1260
1400
1650
1850
2000
2350
2650
2820
3150
3370
3700
4200
3720
4400
4500
Width
690
690
700
750
850
850
950
1200
1400
1400
1450
1540
1900
1800
1970
2150
2000
Height
1180
1180
1245
1250
1500
1510
1530
1975
2170
1646
1860
1995
2650
2700
2115
3060
3000
Net Weight of the Equipment(kg)
220
240
260
400
780
820
1000
1400
18700
2200
2500
3300
3700
3900
4000
4500
4900
High-temperature & Water-cooling Type Refrigerated Dryer
Model
ZRD-10W
ZRD-13W
ZRD-15W
ZRD-20W
ZRD-30W
ZRD-40W
ZRD-60W
ZRD-80W
ZRD-100W
ZRD-130W
ZRD-150W
ZRD-200W
ZRD-250W
ZRD-280W
ZRD-300W
ZRD-350W
ZRD-400W
Air Flow Rate(N
/min)
11
13.5
17
23
35
45
65
85
110
140
160
210
260
290
310
360
410
Power Supply
220V/50Hz
∅/380V/50Hz
Compressor Power(Kw)
2.22
2.59
2.96
3.70
5.55
7.77
11.10
14.80
18.50
22.20
29.60
37.00
44.40
44.40
51.80
59.20
74.00
Cooling Water Circulation Volume(N
/h)
2.0
2.0
5.0
7.2
11
14
22
29
32
36.1
50.0
70.0
78.8
84.0
93.0
105
135
Air Connection Diameter DN(mm)
G2"
DN65
DN65
DN65
DN80
DN125
DN125
DN150
DN150
DN150
DN200
DN200
DN200
DN250
DN250
DN250
DN300
Cooling Water Pipe Diameter
G1"
G1"
G1"
G1"
G1½"
G1½"
G1½"
G2"
G2"
G1½"*2
G1½"
G1½"
G3"
G3"
DN100
DN100
G1½"*2
Outline Diamension(mm)
Length
1140
1140
1260
1400
1650
1850
2000
2395
2650
2820
3150
3370
4000
4200
4000
4400
4500
Width
690
690
700
750
850
850
950
1200
1400
1400
1450
1540
1800
1800
1800
3000
2000
Height
1180
1180
1245
1250
1500
1510
1550
1980
2170
1646
1860
2334
2800
2900
3000
1800
3000
Net Weight of the Equipment(kg)
260
280
300
450
860
960
1250
1600
2200
2470
2830
3500
3930
4150
4250
4800
5260
