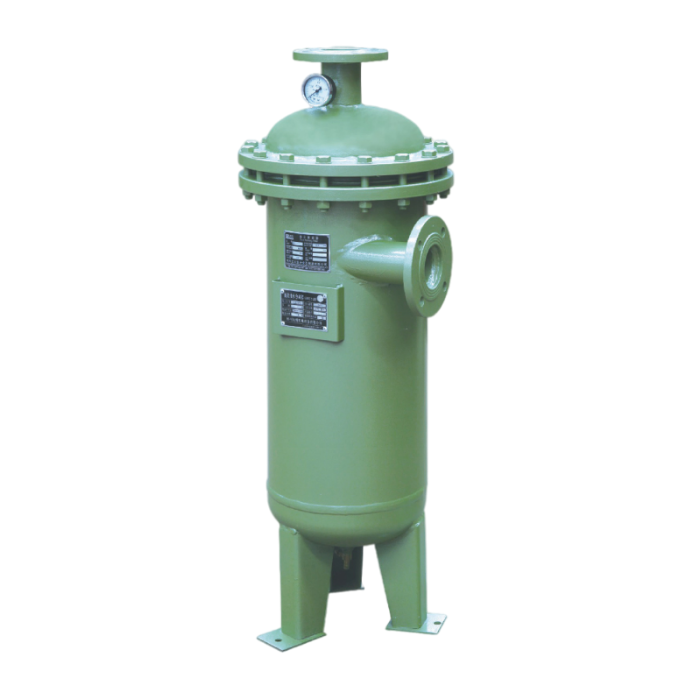

ZYS High-efficiency Oil-water Separator | Excellent Technical Performance and Wide Applicability | Industrial Degreaser Manufacturing

ZYS High-efficiency Oil-water Separator | Excellent Technical Performance and Wide Applicability | Industrial Degreaser Manufacturing

ZYS High-efficiency Oil-water Separator | Excellent Technical Performance and Wide Applicability | Industrial Degreaser Manufacturing
ZYS High-efficiency Oil-water Separator | Excellent Technical Performance and Wide Applicability | Industrial Degreaser ManufacturingZYS High-efficiency Oil-water Separator | Excellent Technical Performance and Wide Applicability | Industrial Degreaser ManufacturingZYS High-efficiency Oil-water Separator | Excellent Technical Performance and Wide Applicability | Industrial Degreaser Manufacturing
CategoriesHigh-efficiency Oil-water Separator
BrandZHENGDA PSA Air Separation Plants
ModelZYS
Air Processing Capacity1〜500Nm³/min
Operating Pressure0.6〜1.0MPa
Rated Air Inlet Temperature≤50℃(Min 5℃)
Filtration Pore Diameter≤5μm
Residual Oil Content≤1ppm
Steam-liquid Separation Efficiency98%
Pressure Drop between Air Inlet and Outlet≤0.02MPa
Environmental Temperature:≤45℃
Filter ElementAdopt the filter material imported from DH Company
Service Life≥8,000h
FOB portShanghai Ningbo
Terms of PaymentL/C, T/T
Update Time2022/9/28
Detail Information
ZYS is mainly composed of container parts, spiral separators, filter element parts, instruments and automatic pollutant discharge devices. The compressed air containing lots of oil, water and solid particles tangentially enters the spiral passageway after the diameter change and acceleration. Most of liquid drop and larger participles are removed due to the centrifugal effect. The pretreated compressed air can only enter the inner cavity of the spiral separator due to the obstruction by the middle tray, and pass through the cylinder-shaped filter element from outside to inside. The separator may further collect the tiny vaporific particles, and generate cohesion, to achieve gas-liquid separation.

This series high-efficiency oil-water separator is the new-generation compressed air secondary purification (gas-water separation and filtration) device developed by the company, with excellent technical performance and wide applicability, able to be installed in the rear of the compressor and after-cooler, in the front of the refrigerated dryer and adsorption dryer, or on the main pipe of general industrial gas, and carry out the effective separation and filtration for pollutants (oil, water and dust) in the compressed air.
Technical Indexes
Air Processing Capacity: 1~500Nm3/min
Operating Pressure: 0.6-1.0MPa (able to provide the product in the range of 1.0-3.0MPa according to the user requirements)
Air Inlet Temperature: w50°C (Min 5°C)
Filtration Pore Diameter: ≤5μm
Residual Oil Content: 1ppm
Steam-liquid Separation Efficiency: 98%
Pressure Drop between Air Inlet and Outlet: ≤0.02MPa
Environmental Temperature: ≤45°C
Filter Element: Adopt the filter material imported from DH Company
Service Life: ≥8,000h
Model
ZYS-1
ZYS-3
ZYS-6
ZYS-10
ZYS-15
ZYS-20
ZYS-30
ZYS-40
ZYS-60
ZYS-80
ZYS-100
ZYS-120
ZYS-150
ZYS-200
ZYS-250
ZYS-300
Air Flow Rate(Nm³/min)
1
3
6
10
15
20
30
40
60
80
100
120
150
200
250
300
Air Connect Pipe Diameter(DN)
25
32
40
50
65
65
80
100
125
150
150
150
200
200
250
300
Tube Diameter Φ A(mm)
102
102
159
159
219
273
325
325
362
412
462
512
562
612
662
716
Foundation Bolt Diameter Φ B(mm)
190
190
250
250
385
320
300
300
350
400
460
500
550
600
650
400
Total Height C(mm)
609
681
760
962
964
1390
1074
1390
1440
1440
1450
1550
1600
1620
1660
1680
Inlet & Outlet Height D(mm)
408
408
460
460
480
1043
700
1000
971
450
975
1010
982
1060
1060
1060
Width E(mm)
238
238
270
270
360
414
495
495
530
580
640
689
739
769
869
921
Net Weight of the Equipment(kg)
25
30
50
75
85
92
105
135
150
195
230
240
260
310
350
425
