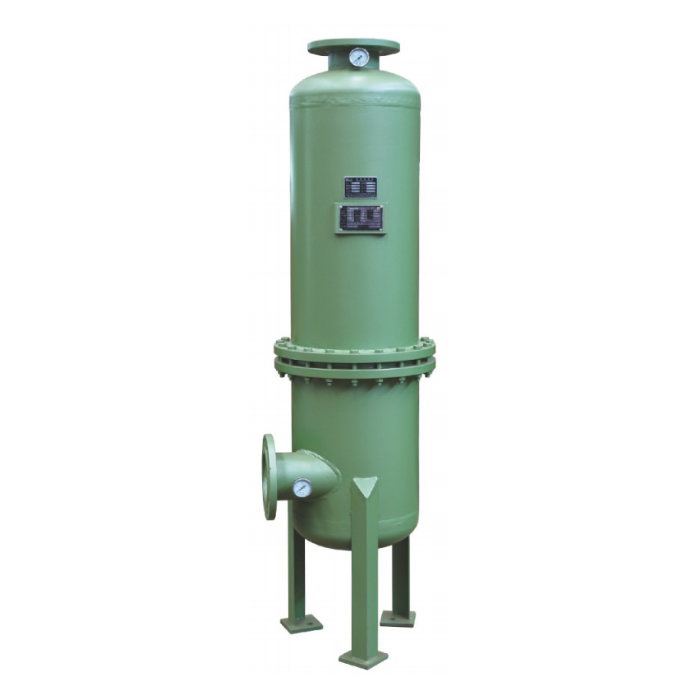

ZLY High-efficiency Oil Removal Device | Air Compressor Oil Removal Equipment | Industrial Degreaser Manufacturing

ZLY High-efficiency Oil Removal Device | Air Compressor Oil Removal Equipment | Industrial Degreaser Manufacturing

ZLY High-efficiency Oil Removal Device | Air Compressor Oil Removal Equipment | Industrial Degreaser Manufacturing
ZLY High-efficiency Oil Removal Device | Air Compressor Oil Removal Equipment | Industrial Degreaser ManufacturingZLY High-efficiency Oil Removal Device | Air Compressor Oil Removal Equipment | Industrial Degreaser ManufacturingZLY High-efficiency Oil Removal Device | Air Compressor Oil Removal Equipment | Industrial Degreaser Manufacturing
CategoriesHigh-efficiency Oil Removal Device
BrandZHENGDA PSA Air Separation Plants
ModelZLY
Air Processing Capacity1〜500Nm³/min
Operating Pressure0.6〜1.0MPa
Rated Air Inlet Temperature≤50℃(Min 5℃)
Residual Oil Content≤0.01PPm
Steam-liquid Separation Efficiency99.9%
Pressure Drop between Air Inlet and Outlet≤0.02MPa
Environmental Temperature:≤45℃
Filter ElementAdopt the filter material imported from DH Company
Service Life≥8,000h
FOB portShanghai Ningbo
Terms of PaymentL/C, T/T
Update Time2022/9/28
Detail Information
High efficiency oil removal device is a filter with an integration of three purification stages like cyclone separation, coarse filtration and fine filtration, carries out the direct interception for oil and water in the air, and performs the filtration through cyclone separation, gravity sedimentation, coarse filtration and fine filter element layer, so as to completely remove the oil, water and dust in the compressed air. For the compressed air passing through this filter, the filtration precision may reach 0.1 μm, and the residual oil volume is less than 0.1 PPm.
Technical Indexes
Air Processing Capacity: 1~500Nm3/min
Operating Pressure: 0.6-1.0MPa (able to provide the product in the range of 1.0-3.0MPa according to the user requirements)
Air Inlet Temperature: 50°C (Min 5°C)
Oil Content of the Outlet Gas: ≤0.01PPm
Steam-liquid Separation Efficiency: 99.9%
Pressure Drop between Air Inlet and Outlet: ≤0.02MPa
Environmental Temperature: ≤45°C
Filter Element: Adopt the filter material imported from DH Company
Service Life: ≥8,000h
Model
ZLY-1
ZLY-3
ZLY-6
ZLY-10
ZLY-15
ZLY-20
ZLY-30
ZLY-40
ZLY-60
ZLY-80
ZLY-100
ZLY-120
ZLY-150
ZLY-200
ZLY-250
ZLY-300
Air Flow Rate(Nm³/min)
1
3
6
10
15
20
30
40
60
80
100
120
150
200
250
300
Air Connect Pipe Diameter(DN)
25
32
40
50
65
65
80
100
125
150
150
150
200
200
250
300
Tube Diameter Φ A(mm)
08
108
159
159
219
219
273
273
362
412
462
512
562
612
662
716
Foundation Bolt Diameter Φ B(mm)
190
190
250
250
385
320
385
385
350
400
450
500
550
600
650
700
Total Height C(mm)
2526
708
788
1190
1285
1588
1368
1763
1858
1940
2200
1345
2290
2456
2484
2502
Inlet & Outlet Height D(mm)
268
268
295
295
350
350
383
383
420
450
975
1000
982
1055
1040
1010
Width E(mm)
238
238
270
270
360
360
360
360
580
580
630
690
739
769
869
921
Net Weight of the Equipment(kg)
40
45
60
96
135
135
160
190
310
310
335
360
415
560
635
730
