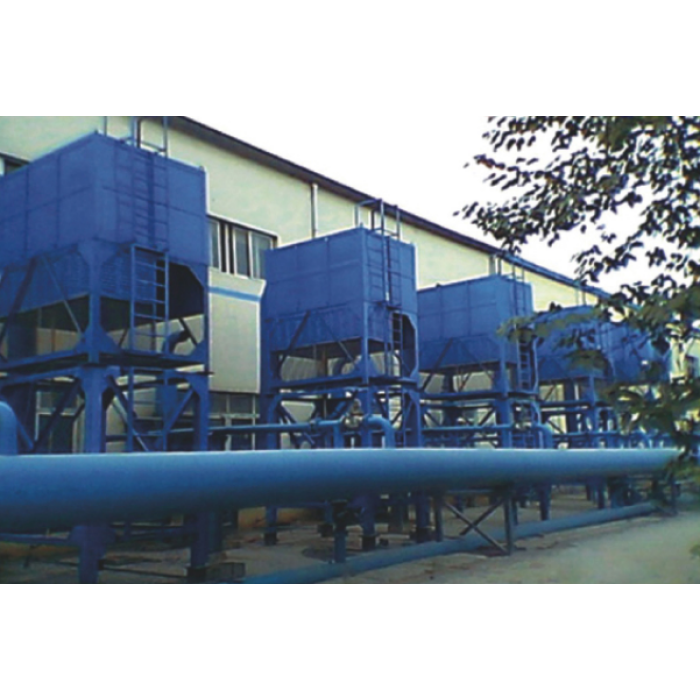

ZJF Self-cleaning Air Filter | Industrial Air Compressor Air Filters | Industrial Equipment Filters Manufacturing

ZJF Self-cleaning Air Filter | Industrial Air Compressor Air Filters | Industrial Equipment Filters Manufacturing

ZJF Self-cleaning Air Filter | Industrial Air Compressor Air Filters | Industrial Equipment Filters Manufacturing
ZJF Self-cleaning Air Filter | Industrial Air Compressor Air Filters | Industrial Equipment Filters ManufacturingZJF Self-cleaning Air Filter | Industrial Air Compressor Air Filters | Industrial Equipment Filters ManufacturingZJF Self-cleaning Air Filter | Industrial Air Compressor Air Filters | Industrial Equipment Filters Manufacturing
CategoriesSelf-cleaning Air Filter
BrandZHENGDA PSA Air Separation Plants
ModelZJF
Rated Flow Rate40〜1500m³/min
Electrical Equipment SafetyIP56, industrial area
Operating Temperature-10℃〜43℃
Operating EnvironmentOutdoor environment of the industrial area
Self-cleaning Gas Source (Back Flushing) Pressure0.4MPa
Structural TypeOutdoor vertical type
Gas Consumption (Back Flushing Gas Volume)0.1〜0.5m³/min
Filter MaterialPlant fiber paper imported from HV Company (USA)
Power Supply of the Control SystemAC220V/50Hz, ≤200w
FOB portShanghai Ningbo
Terms of PaymentL/C, T/T
Update Time2022/5/21
Detail Information
Self cleaning air filter:
Under the action of negative pressure on the suction side of the compressor, the self-cleaning air filter sucks the surrounding ambient air. The dust in the air is deposited on the external surface of the filter cylinder. The clean gas passes through the filter cylinder, converges in the gas cleaning chamber, and enters the gas inlet of the air compressor through the gas outflow pipe. The microcomputer programming controller gives an order after obtaining the instruction (differential pressure, time and manual operation). The pulse solenoid valve will be instantaneously opened, send out the pressure as the pulse airflow of the discharge pressure for the air compressor, undergo venturi jet flow and entrainment, and remove the dust deposited on the external surface of the filter cylinder.

This back flushing & self-cleaning process is discontinuous. Every time, it can only carry out the self-cleaning for a small part of the filter cylinder, and other part of the filter cylinder is still operated. Thus, the self-cleaning filter produced by our company has the on-line self-cleaning function, so as to ensure the continuous operation of the compressor.
Technical Features
• The equipment adopts the international & domestic famous controller to ensure the reliable operation, and has functions like automatic operation, manual operation and warning, so as to achieve the on-site unmanned operation.
• During the process of on-line operation, the equipment* s filter element replacement and controller adjustment may be carried out the on-line treatment, which doesn* t affect the use of subsequent equipment.
• During the process of back flushing adjustment, back flushing may be automatically and manually adjusted, so as to achieve the on-line adjustment for the equipment. The back flushing gas is carried out the pre-filtration, so that the filter cylinder is much cleaner after back flushing.
• Due to the unique design for the filter cylinder, for particles of m 1 卩 m, the filtration efficiency may reach >99.96%, so as to achieve high filtration efficiency.
• In the electrical aspect, the equipment is reliably designed (IP56), adopts the outdoor installation method in the industrial area, with remote start & stop functions, and convenient & reliable operation.
Technical Indexes
Rated Flow Rate: 40~1500m3/min
Electrical Equipment Safety: IP56, industrial areas
Operating Temperature: -10℃~43℃
Operating Environment: Outdoor environment of the industrial area
Self-cleaning Gas Source (Back Flushing) Pressure: 0.4MPa
Structural Type: Outdoor vertical type
Gas Consumption (Back Flushing Gas Volume): 0.1~0.5m3/min
Filter Material: Plant fiber paper imported from HV Company (USA)
Power Supply of the Control System: AC220V/50Hz, ≤200w
Control Mode: PLC programmable controller, automatic cleaning for the filter element
Model
ZJF-40
ZJF-60
ZJF-80
ZJF-100
ZJF-120
ZJF-160
ZJF-200
ZJF-250
ZJF-300
ZJF-400
ZJF-500
ZJF-600
ZJF-800
ZJF-1000
ZJF-1200
Filtered Air (m³/min)
40
60
80
100
120
160
200
250
300
400
500
600
800
1000
1200
Compensatory Resistance(Pa)
≤100
≤100
≤100
≤100
≤150
≤150
≤200
≤200
≤200
≤200
≤200
≤200
≤200
≤300
≤300
Filtration Efficiency / Diameter
99.96% 1μm   99.99% 2μm   100% 3μm
Gas Consumption (m3/min)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
0.3
0.3
Electric Power(W)
100
100
100
100
100
100
100
100
200
200
200
200
200
200
200
Outline Dimension (mm)
Length
1000
1150
1850
1850
1850
2000
2300
2750
2750
3200
3650
3650
4100
4550
5450
Width
1000
1000
1000
1000
1400
1850
1850
1850
2300
2300
2300
2750
3200
3650
3650
Height
2400
2400
2400
2500
2500
2700
2750
2750
2800
2900
2900
3000
3200
3200
3300
Equipment Weight (kg)
400
600
700
800
900
1200
1600
2000
2400
3000
3500
4100
4100
5900
7300
Note: Standard Operating Condition of Gas Inflow: Gas Inlet Temperature: 20℃, Gas Inlet Pressure: 1atm, Average Relative Temperature: 80%, Dust Content in the Atmosphere: 15mg/m3
